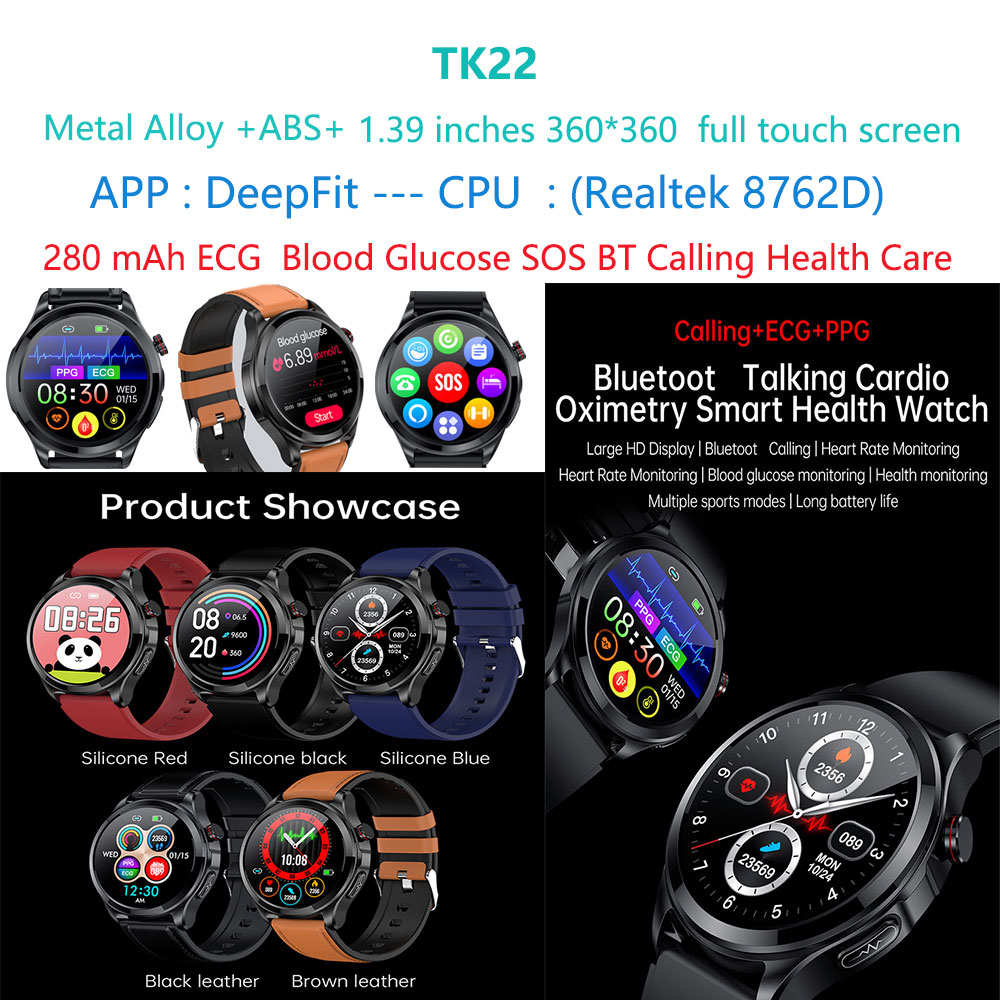

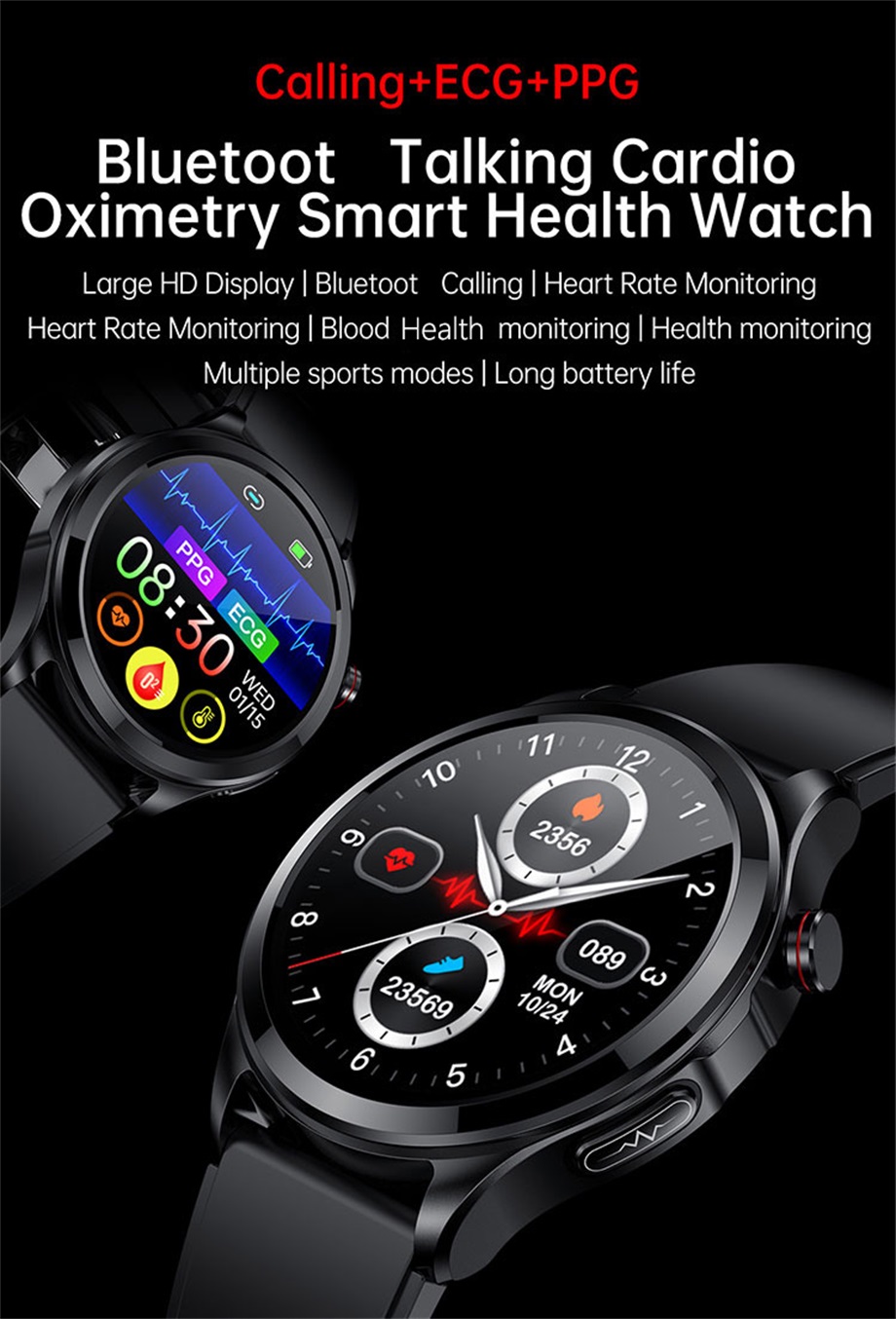

| The latest in the World TK22 Multi-functional BT Call+ECG temperature + Blood health SOS Emergency Call health care smart watch |
| Basic overview |
| Name of project | TK22 |
| Market Orientation | BT call+ECG temperature and blood health smart watch |

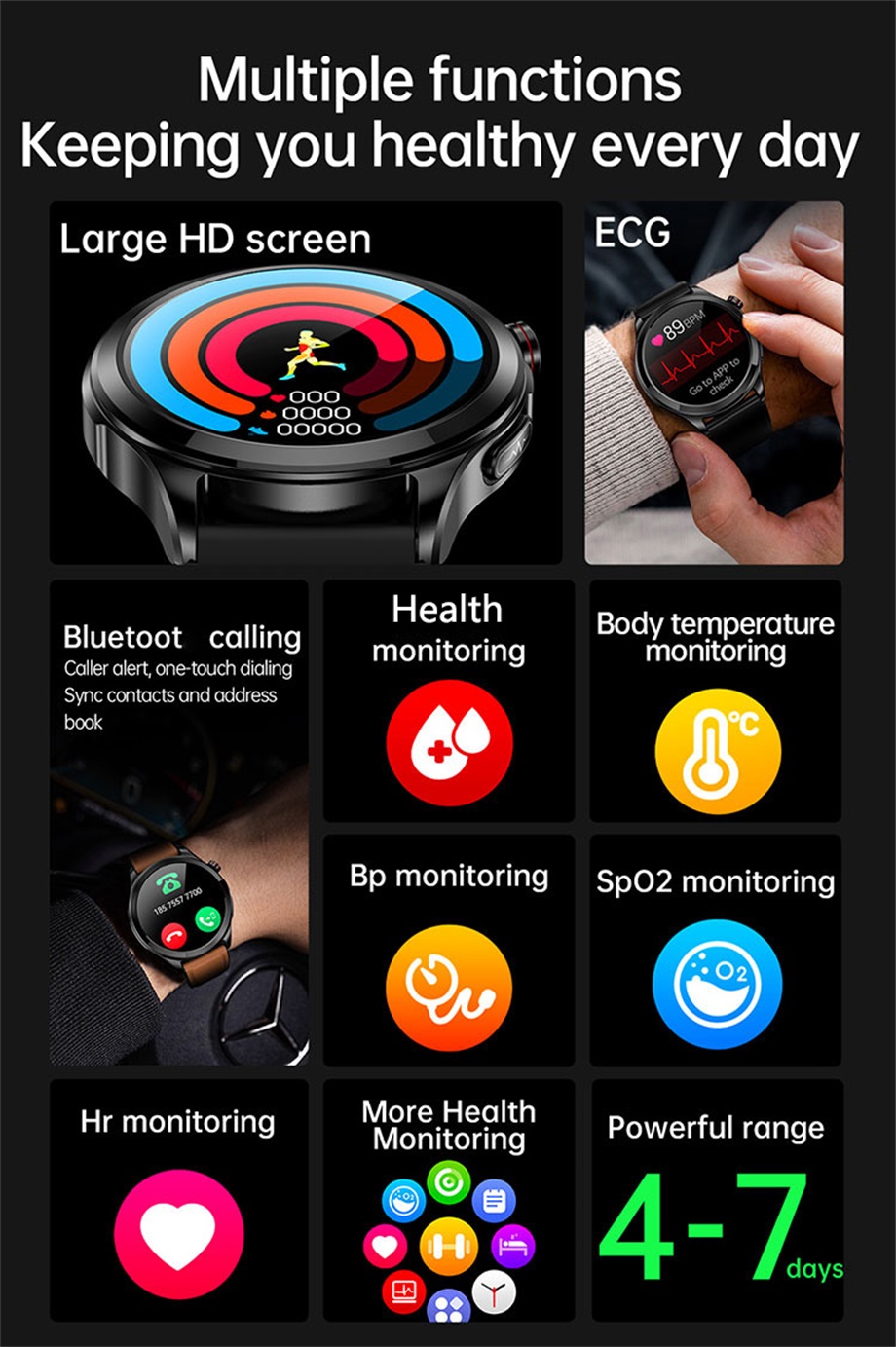

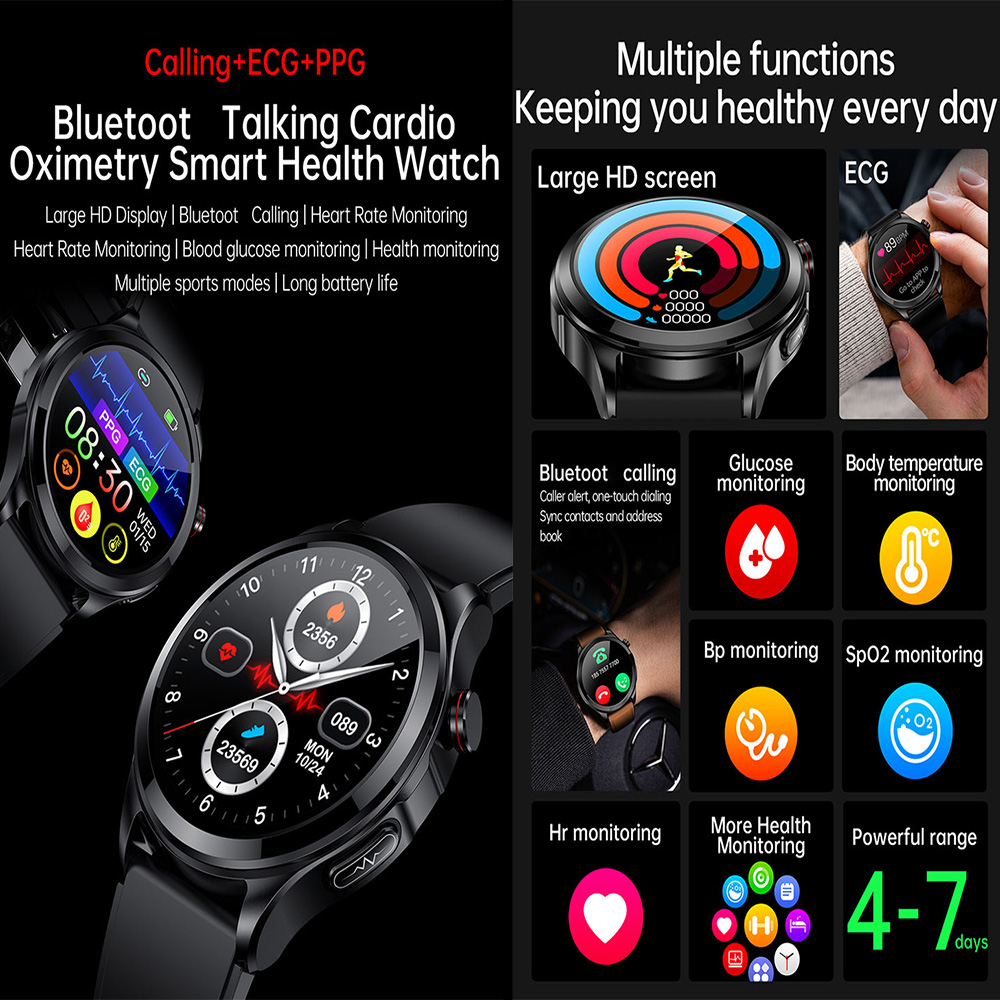

| Features | 1. 1.39-inch 360 * 360 high-definition full touch screen

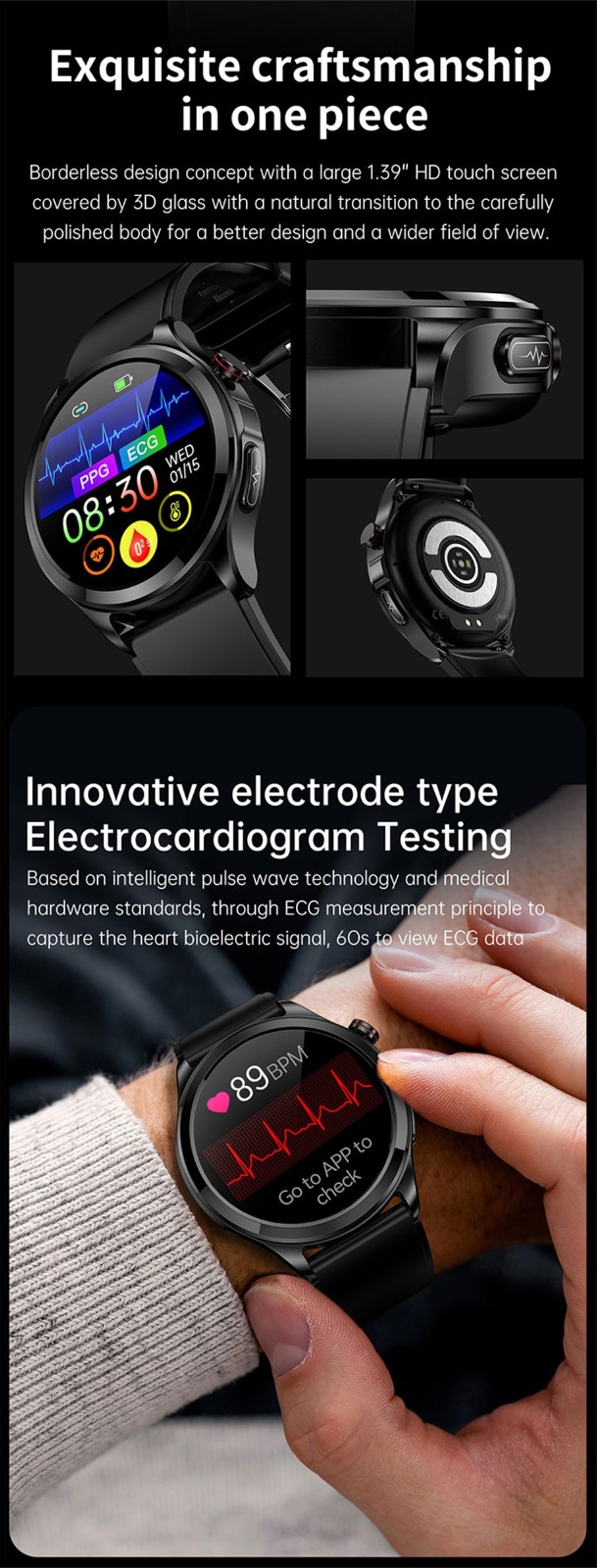

2. Electrocardiogram, ECG+PPG (electrode+photoelectric) testing for heart rate/electrocardiogram/blood pressure. (Generate ECG report HRV report, ECG playback)
3. Dual mode BT call, intelligent voice assistant
4. Health monitoring of body temperature, non-invasive blood health , sleep, blood pressure, heart rate, stress, etc |

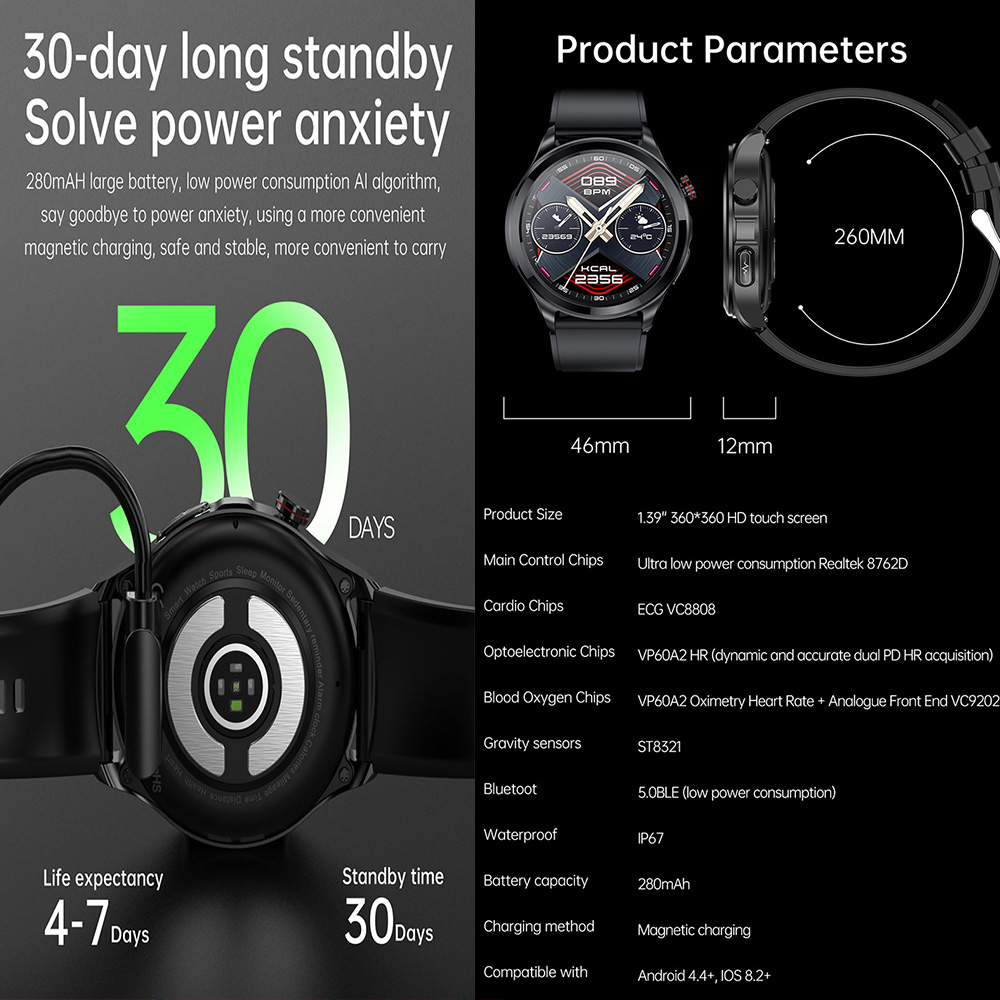

| Hardware information |
| Product model | TK22 |
| Product size | 265*46*11.6MM |
| CPU | REALTEK (Realtek)RTL8762D |
| Blood oxygen chip | VP60A2 blood oxygen heart rate+analog front-end VC9202 |
| ECG chip | VC8808 |

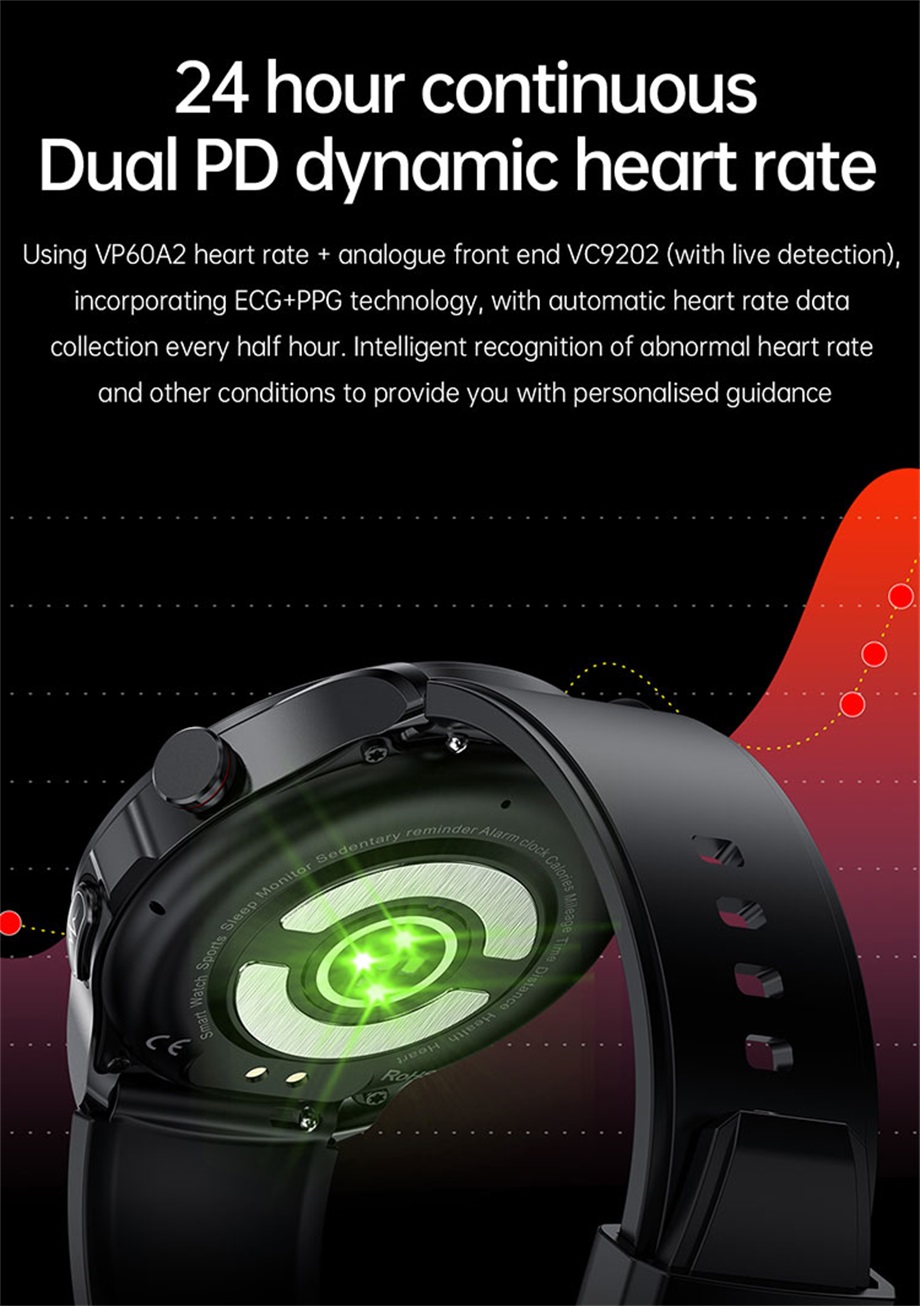

| Optoelectronic chip | VP60A2 Heart Rate (Dynamic accurate dual PD heart rate Collection) |
| Flash | 128Mb |
| GPS/AGPS | Not support |
| Acceleration sensor | Support, SENSORTEK (Sheng Jia) STK8321 |
| Dual mode dial-up BT calling | Support |

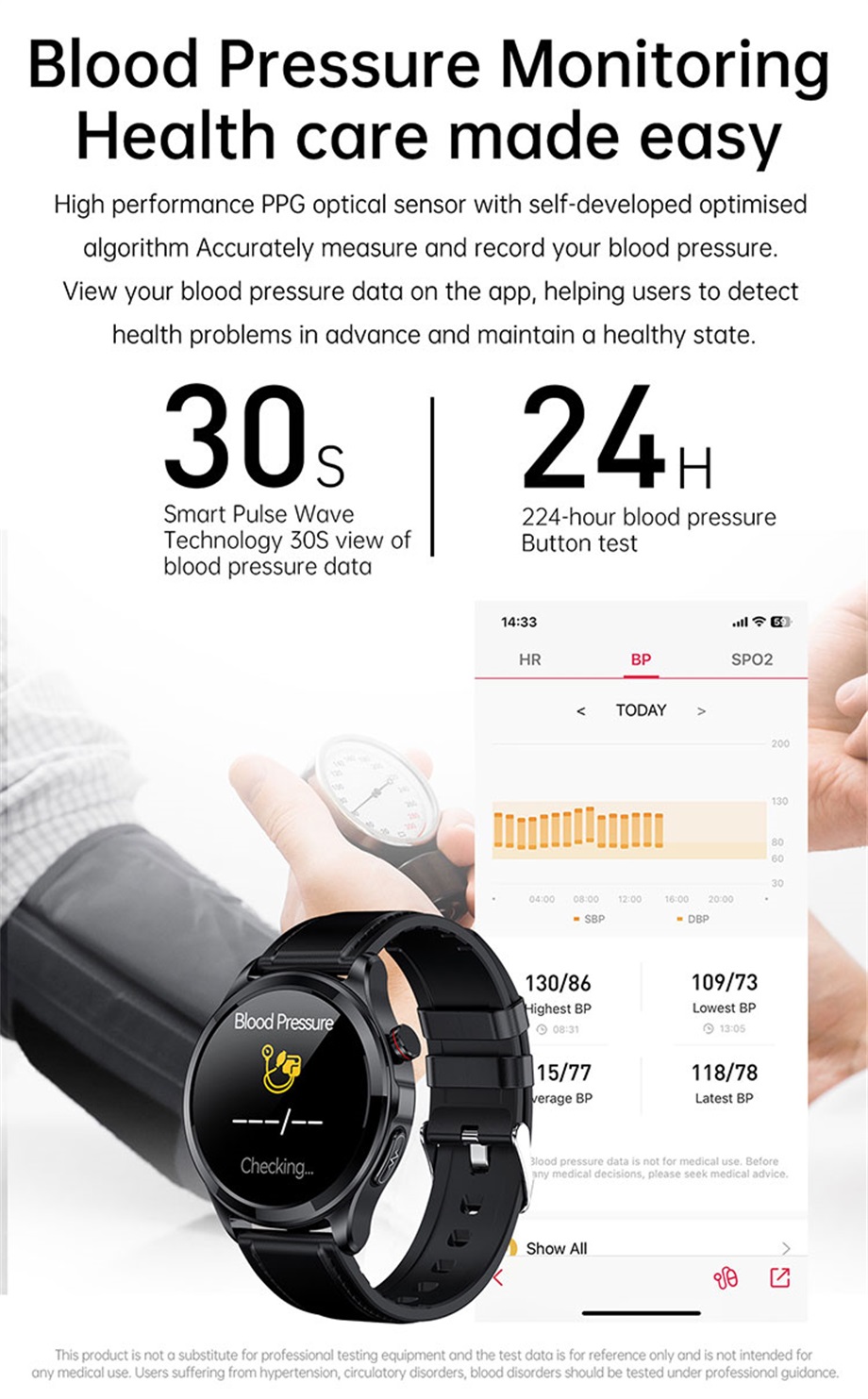

| Blood pressure measurement | Support |
| Blood oxygen measurement | Support |
| BT | BT LE 5.0 |

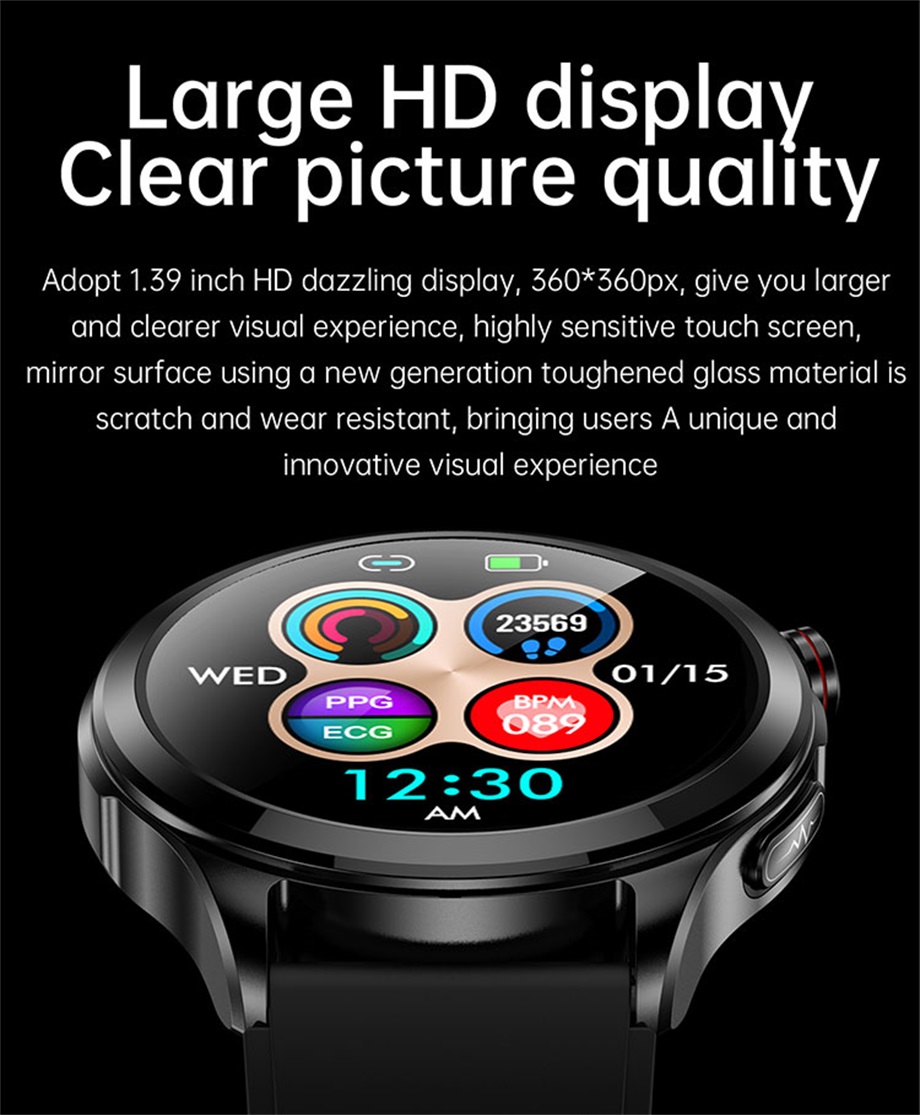

| LCD | 1.39 inch, IPS high resolution 360X360 HD full touch screen |
| Touch control | Capacitive multi-point full touch |
| Motor | Support |
| USB | Support |

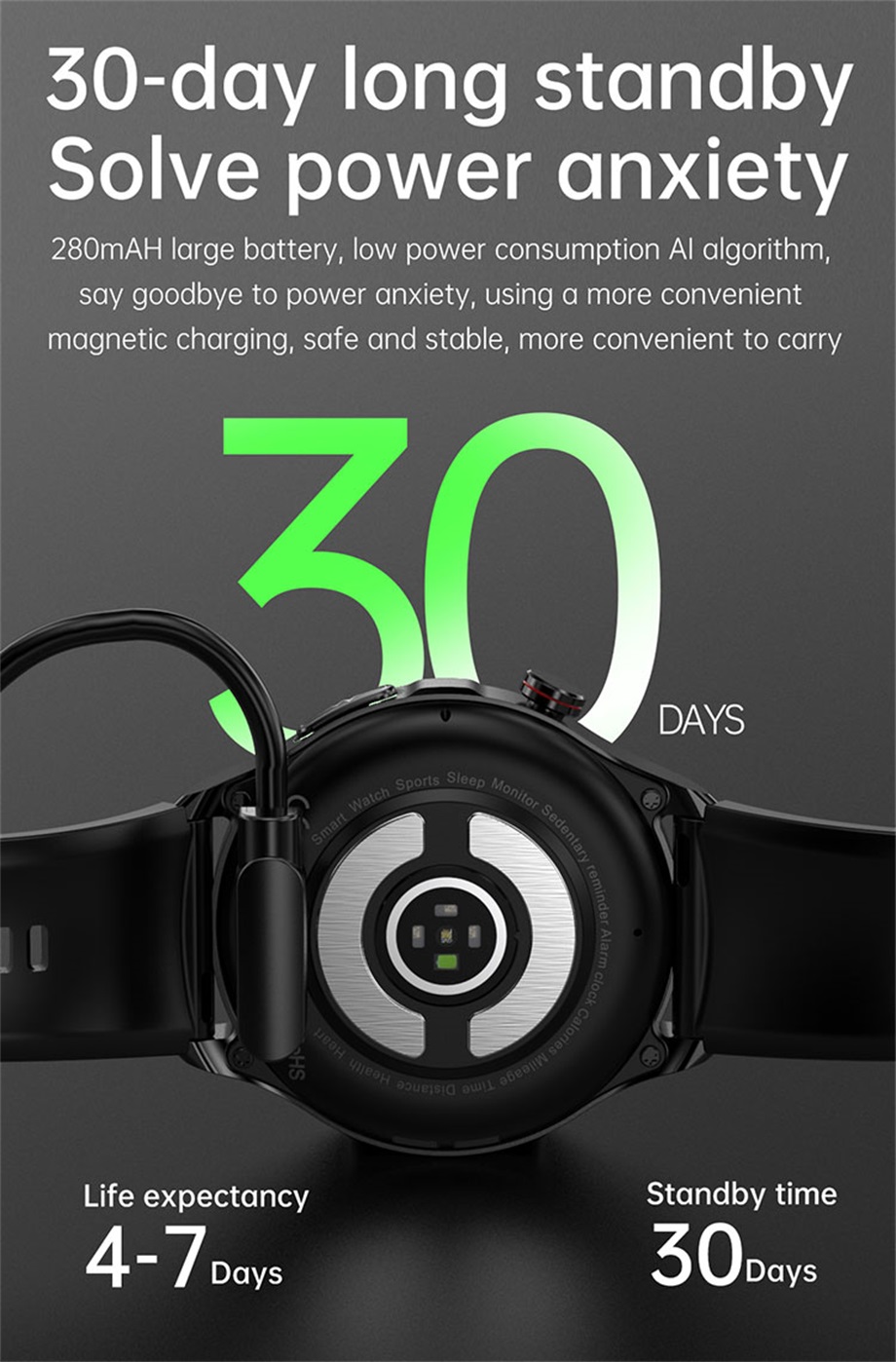

| Charging mode | 2PIN thimble magnetic charging |
| Side key | Support 2side key |

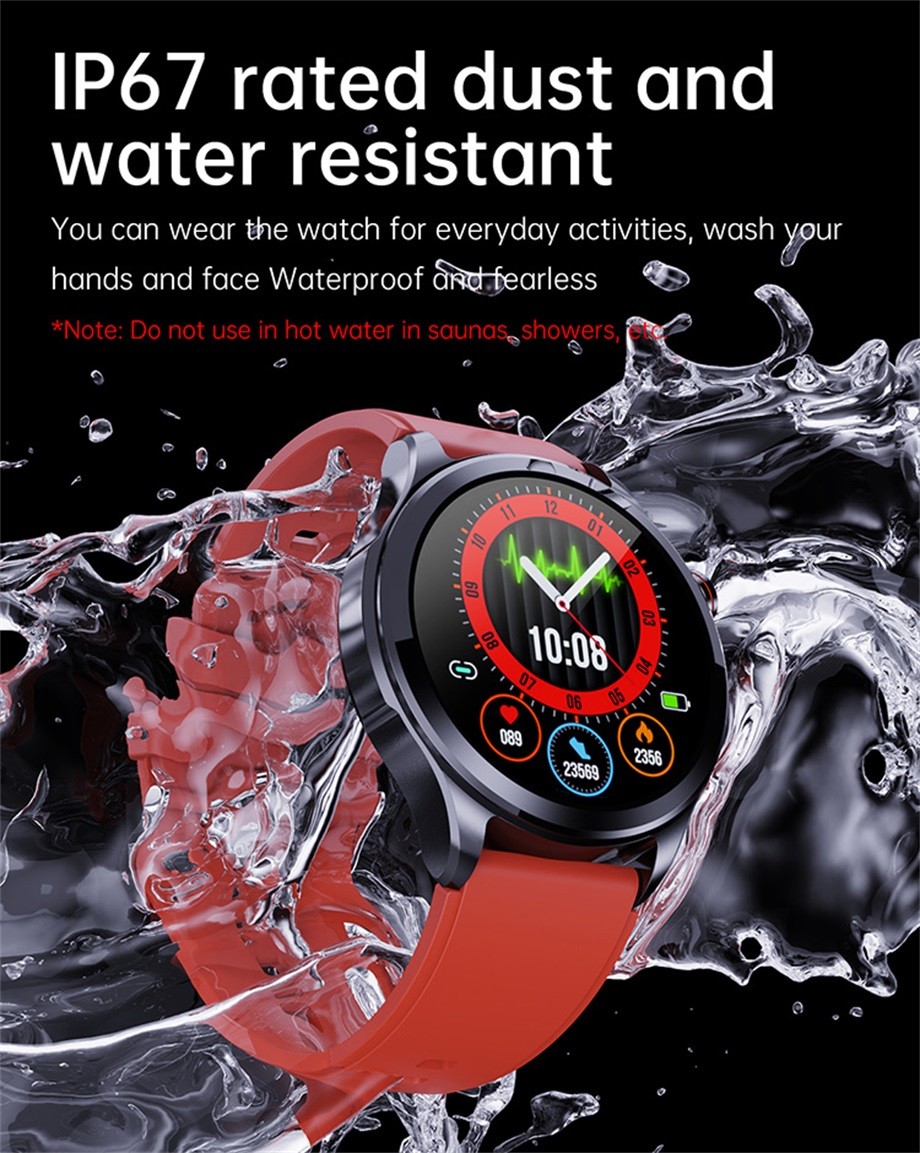

| Water proof | IP67 waterproof |
| Battery capacity | 280mah polymer battery |
| Box Szie | Carton size: 625*405*160MM (length, width and height) /50 boxes
Gift box size: 195*120*28MM |
| Software function |
| BT call | Support |
| ECG+PPG | Support |

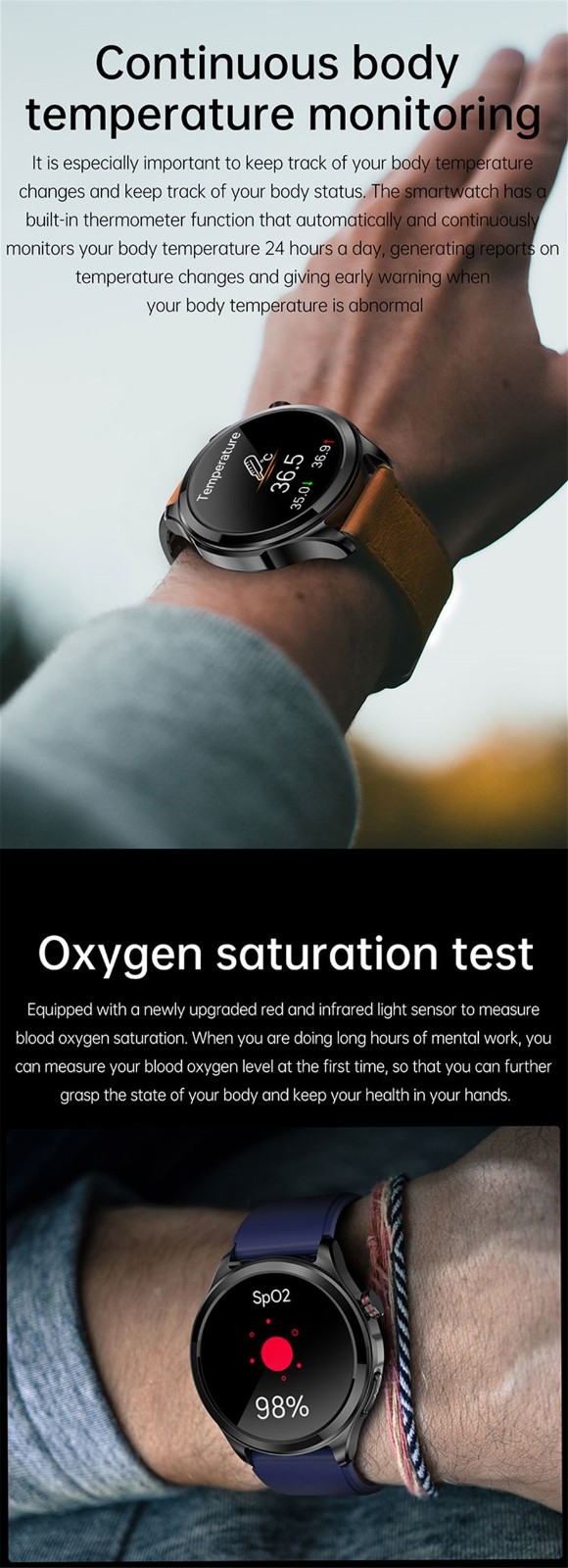

| Temperature monitoring | Support |
| Blood health monitoring | Support |

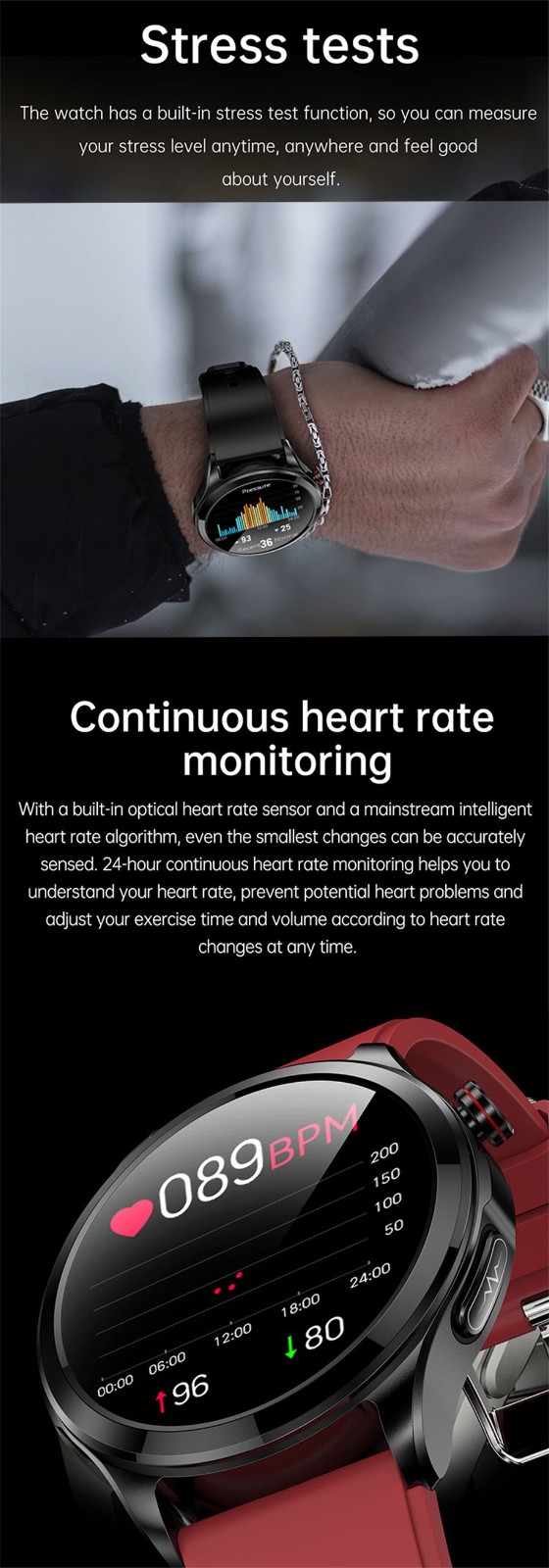

| Health monitoring | Real time monitoring of heart rate, blood pressure, blood oxygen, and pressure |
| Sleep monitoring | Support |

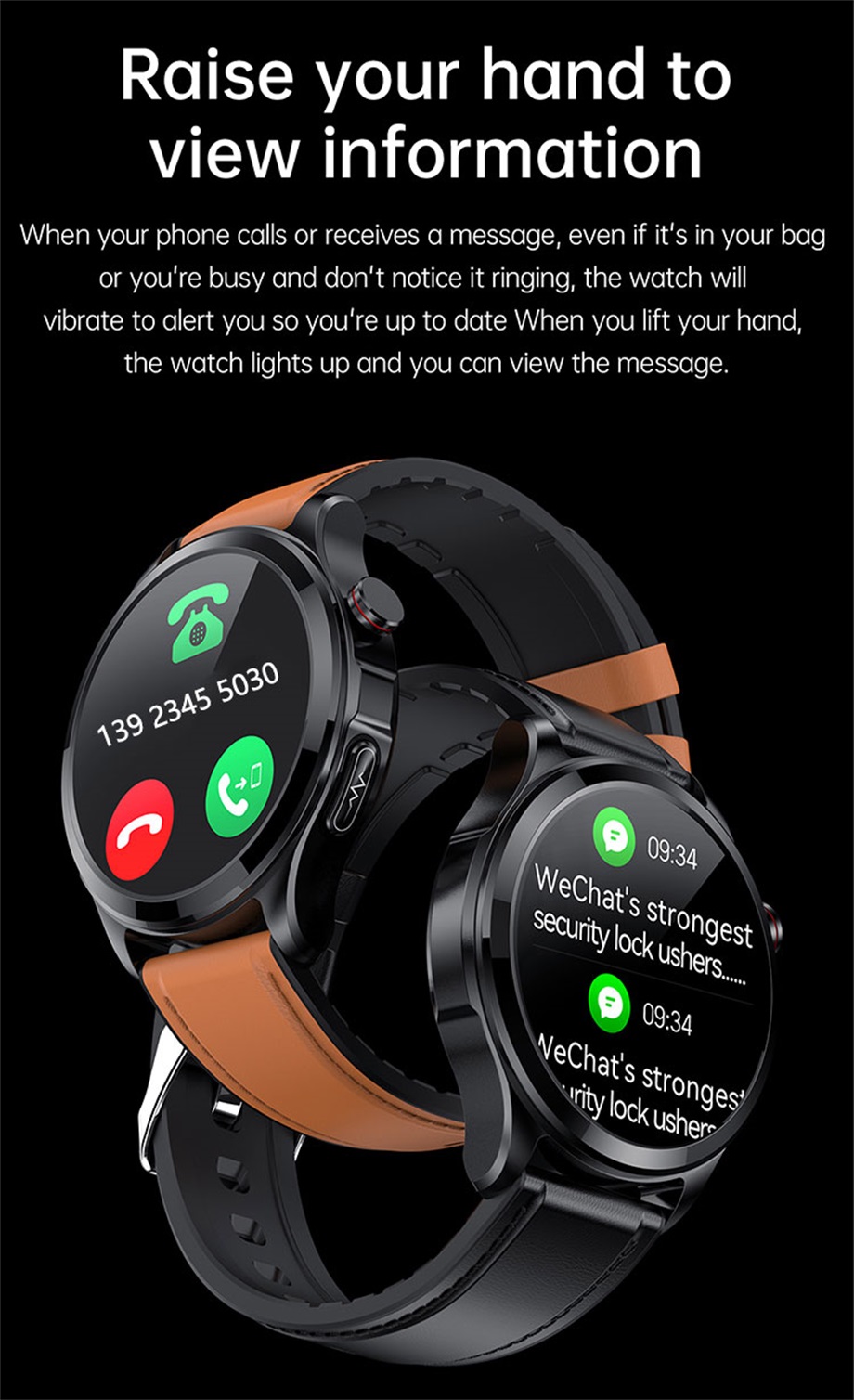

| Brightness Adjustment | Stopwatch, flashlight, countdown, step counting, calorie count, distance, sleep monitoring, exercise mode, call reminder, alarm reminder, sedentary reminder, raised hand screen, social sharing (WeChat, QQ, Facebook, Twitter), Shake and take photos etc |
| Multi-sport mode | Watches support 20 types: walking, running, hiking, cycling, skipping rope, basketball, badminton, football, yoga wait |
| Message notification | Call, SMS, Email, WeChat, QQ, Facebook, Twitter, WhatsApp, LinkedIn, Instagram, Messenger, Snapchat, Line, Kakao Talk, Viber, Skype, telegram |

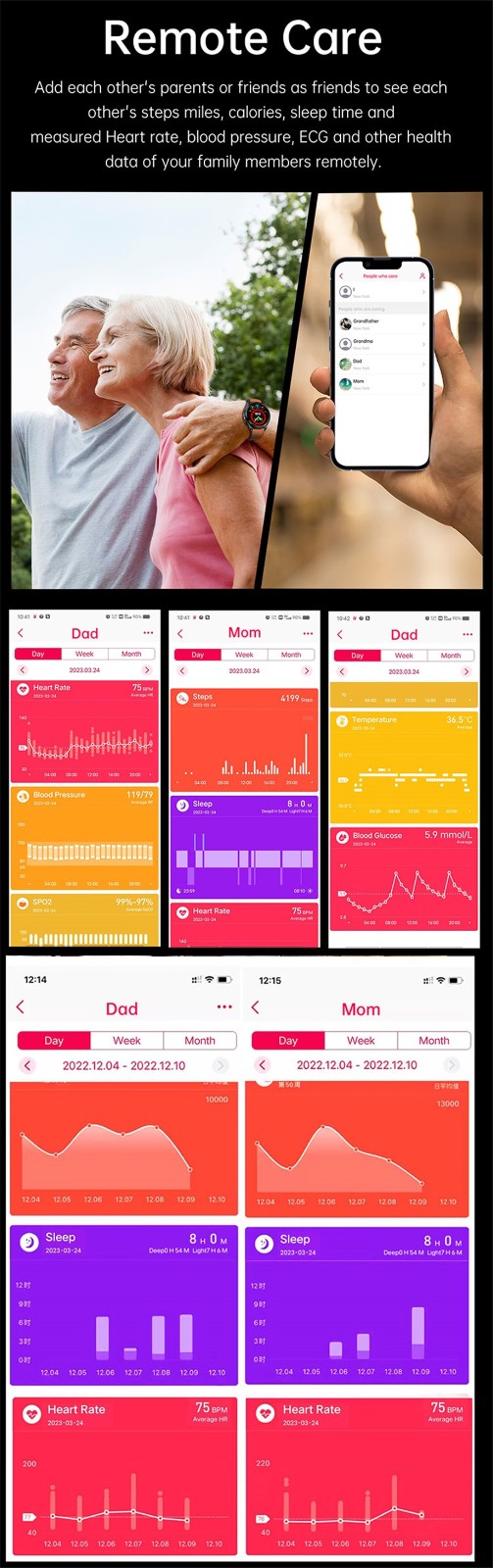

| Remote care | Support |
| Call rejection | Support |

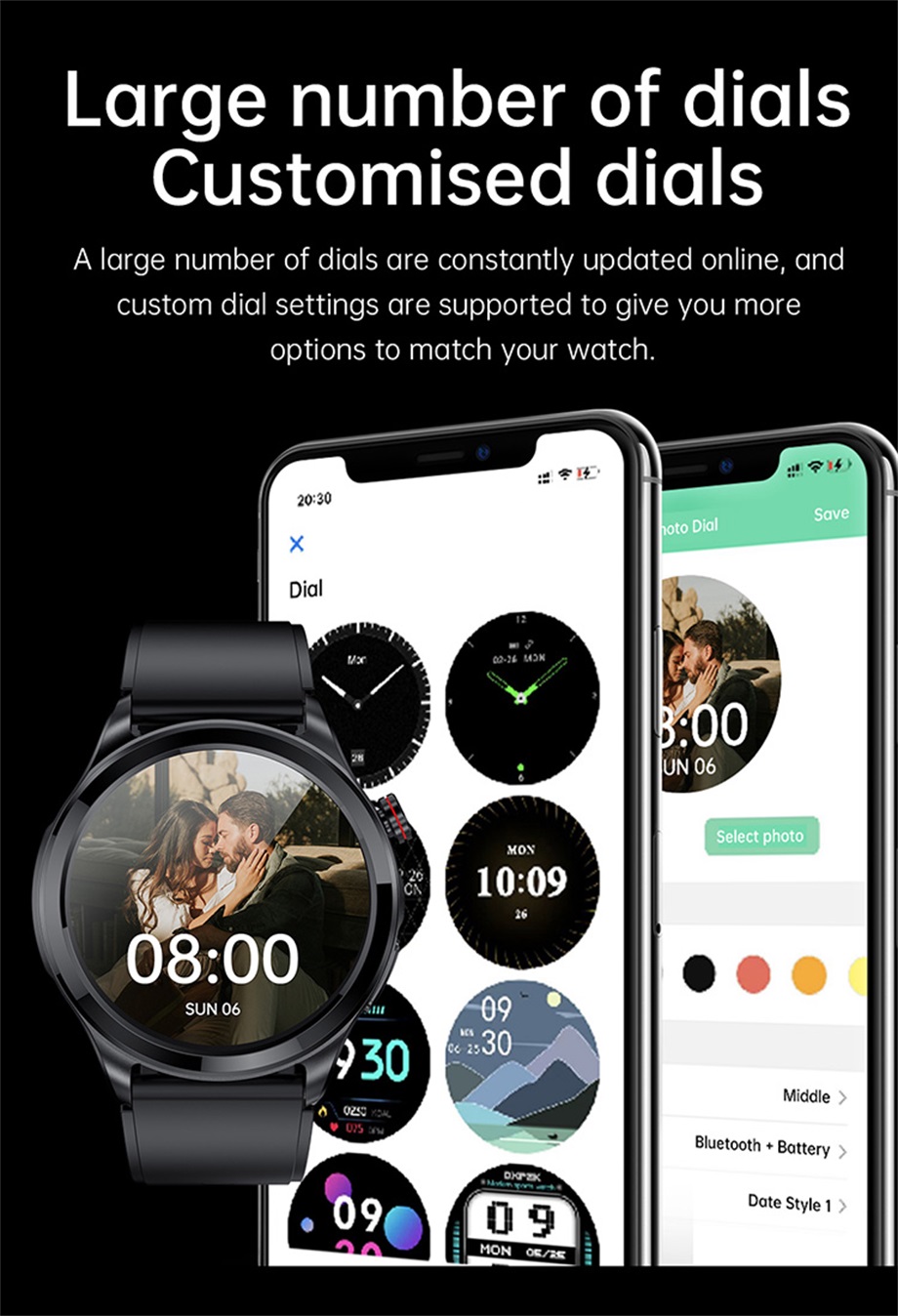

| Dial selection | 7+1 dial options, (APP can customize the dial) |
| Remote control music | Control the mobile phone player Pause the previous track, the next track |
| APP | DeepFit |
| OTA upgrade | Support |

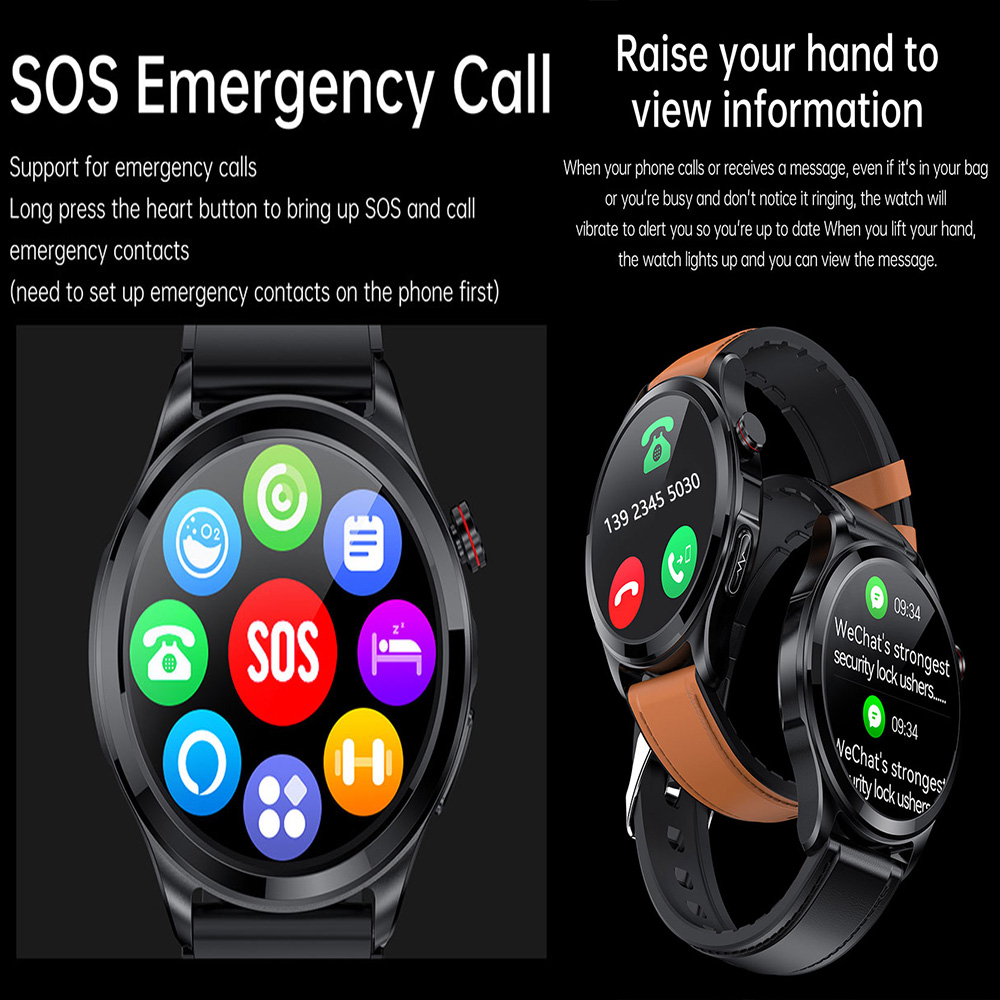

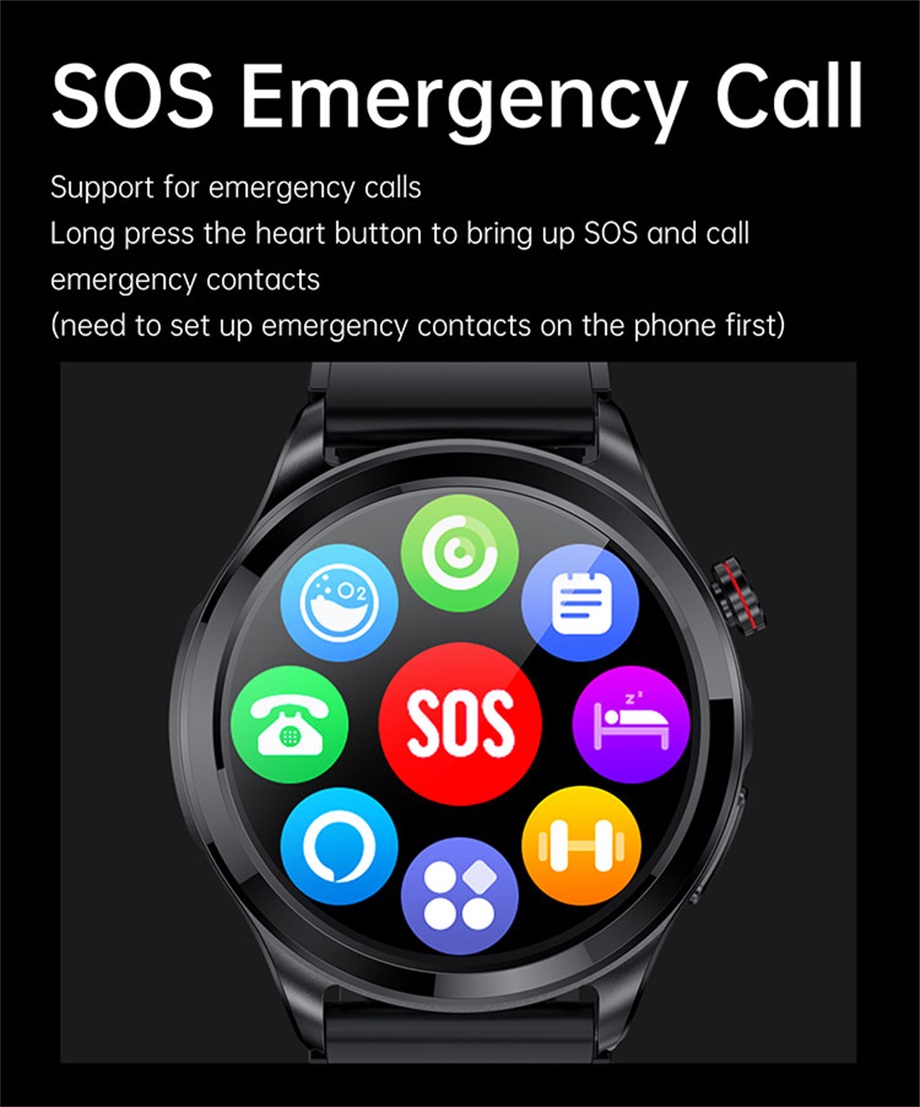

| Accessibility | SOS,Dial pad, Siri dial, find phone, find bracelet, dial switch |
| Message Push Language | Chinese, English (default), Traditional, Japanese, French, German, Italy, Spain, Russia, Portugal, Malaysia, Korean, Poland |
| Message Push Language | APP (following the phone): Chinese, Traditional, English (default), German, French, Italian, Spanish, Japanese, Polish, Russian, Portuguese, Vietnamese, Arabic, Thai,
Turkish, Dutch, Malaysian |
| APP System | Support mobile phone version iOS 8.0 and above Android 4.4 and above |
| Packaging Information |
| Appearance material | Enclosure: metal alloy+stainless steel
Bottom shell: PC+ABS+ medical 316 steel
strap: environmental protection TPU leather strap |

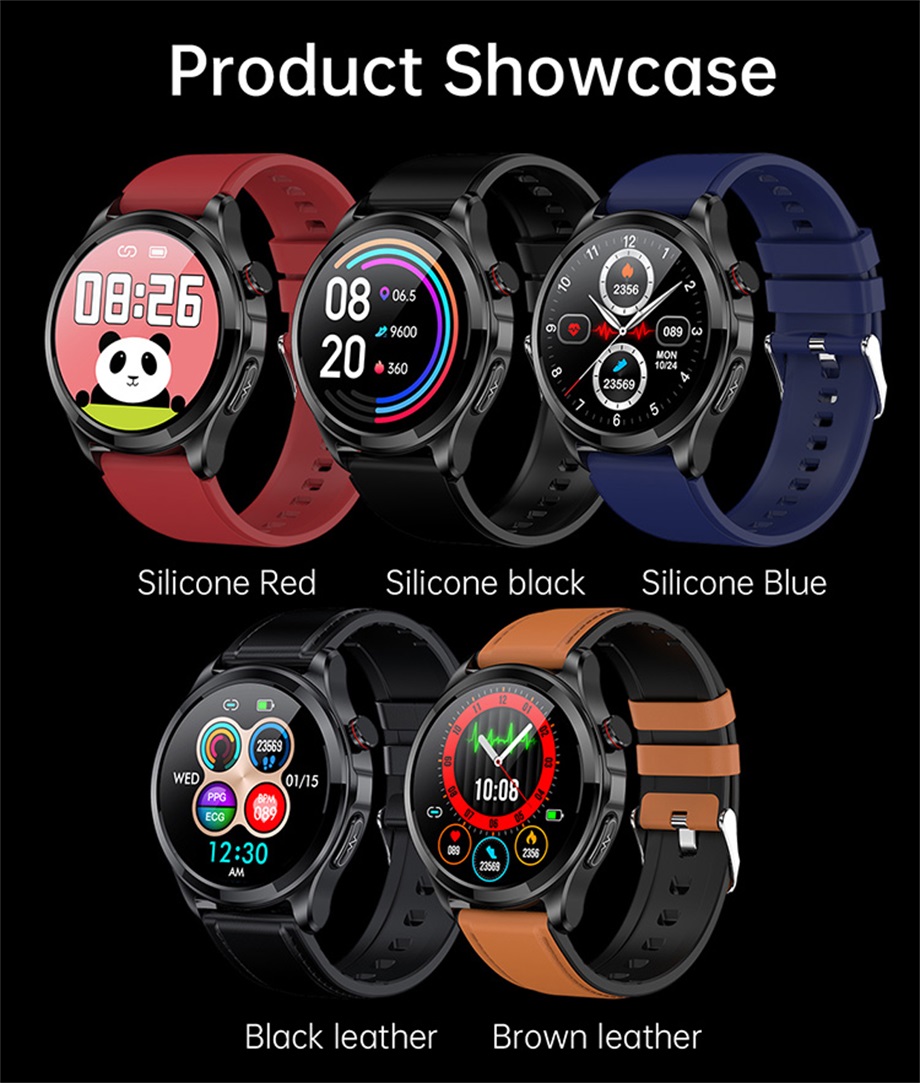

| Product Color | 5 colors, black body matching (TPU black, blue, red 3 colors, and leather black, leather brown) |
| Packaging List | Watch, charging cable, instruction manual, packing box |
| Band size | Watch, charging cable, instruction manual, packing box |
| weight | TPU strap configuration: box weight: 10.8KG bare metal weight: 45g complete machine weight: 215g
Leather strap configuration: case weight: 11.5KG bare metal weight: 45g complete machine weight: 219.5g |
| Packaging size | Carton size: 625*405*160MM (length, width and height) /50 boxes
Gift box size: 195*120*28MM |
